MBC Marine 12V/7000 BTU all-in-one pack air-condition pack with standard 3” display

(0 Review)

الماركة
Voltage
Cooling Capacity Btu/h
- 7000

هذه التركيبة غير موجودة.

Marine Air Conditioner

أطلب المنتج

MBC Marine

وكيل رسمي وخدمة معتمدة

تفاصيل

مدة تسليم سريعة: 1-3 أيام (داخل السعودية)

5-10 (دول الخليج)

Tags	Marine Air Conditioner

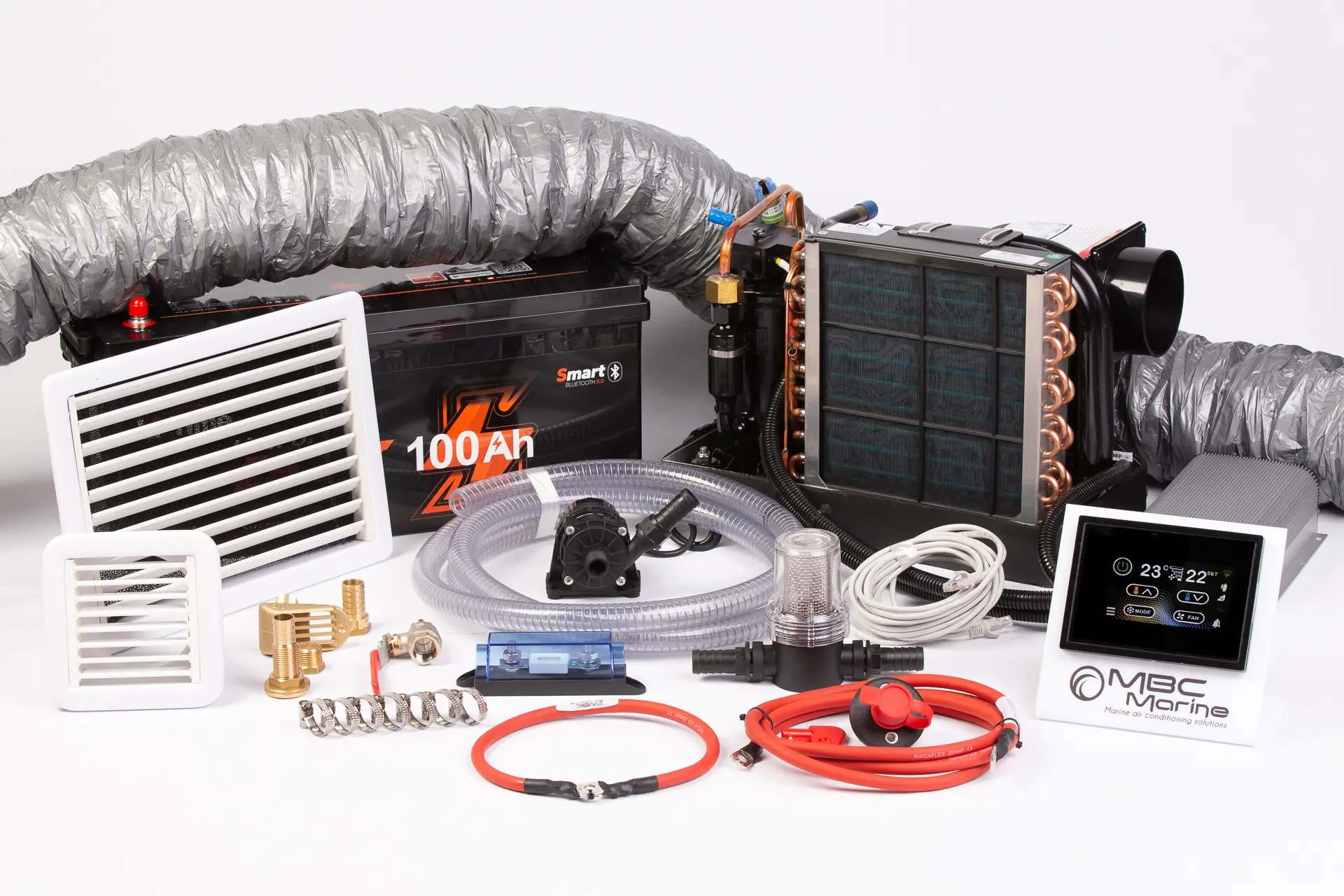

AIST1207 - 12V 7,000 BTU all-in-one pack with standard 3” display 12V 7,000 BTU all-in-one pack with standard 3” display Includes SDC unit, 100Ah LiFePO4 battery, 20A charger, DC56 pump, main switch, fuse, cables, duct, grilles, sea water pipe, clamps, fittings, valve, intake, and strainer. Confirm compatibility before installation. Designed for marine air-conditioning use.

Specifications of The A/C Unit

Unit Parameters		SDC 24-12000
Power Supply	Direct Current	DC24V
COOLING
Capacity	BTU/h	12000
Rated power	kW	0.72
Rated current NORMAL mode *	A	18-20
Rated current ECO *	A	10-14
HEATING
Capacity	BTU/h	13000
Rated power	kW	0.8
Rated current NORMAL mode *	A	40-42
Rated current ECO mode *	A	22-24
Seawater flow	m3/h	0.9
Air flow	m3/h	450
Dehumidification	L/h	1.2
Noise level	dB(A)	50
Width	mm	480
Height	mm	300
Depth	mm	285
Weight	kg	23
Refrigerant type		R134A
Air duct Diameter	mm	125
Sea water pipe Diameter	mm	16
* Note: DC power consumption varies with seawater temp, humidity, power quality, wiring, and ventilation. Rated values assume normal conditions.

Standard package

Quantity	Description
3 meters	Thermally insulated air duct
1x	MBC SDC 24-12000 air conditioning unit (12000 BTU, 24V DC)
1x	MBC AMPS01 seawater strainer
1x	MBC DC 5624F brushless circulation pump
1x	1/2” seawater intake fitting
1x	1/2” ball valve
1x	200×100 mm plastic supply air grille
1x	1/2” seawater discharge fitting
2x 2.5 meter	35mm² power supply cables with cable lugs
1x	200×300 mm plastic return air grille
1x	40A fuse
1x	Main switch
1x	Fuse box
3 meters	Armoflex seawater pipe
1x	1/2” female hose connector
2x	1/2” male hose connector
7x	W4 16-25 stainless steel hose clamps

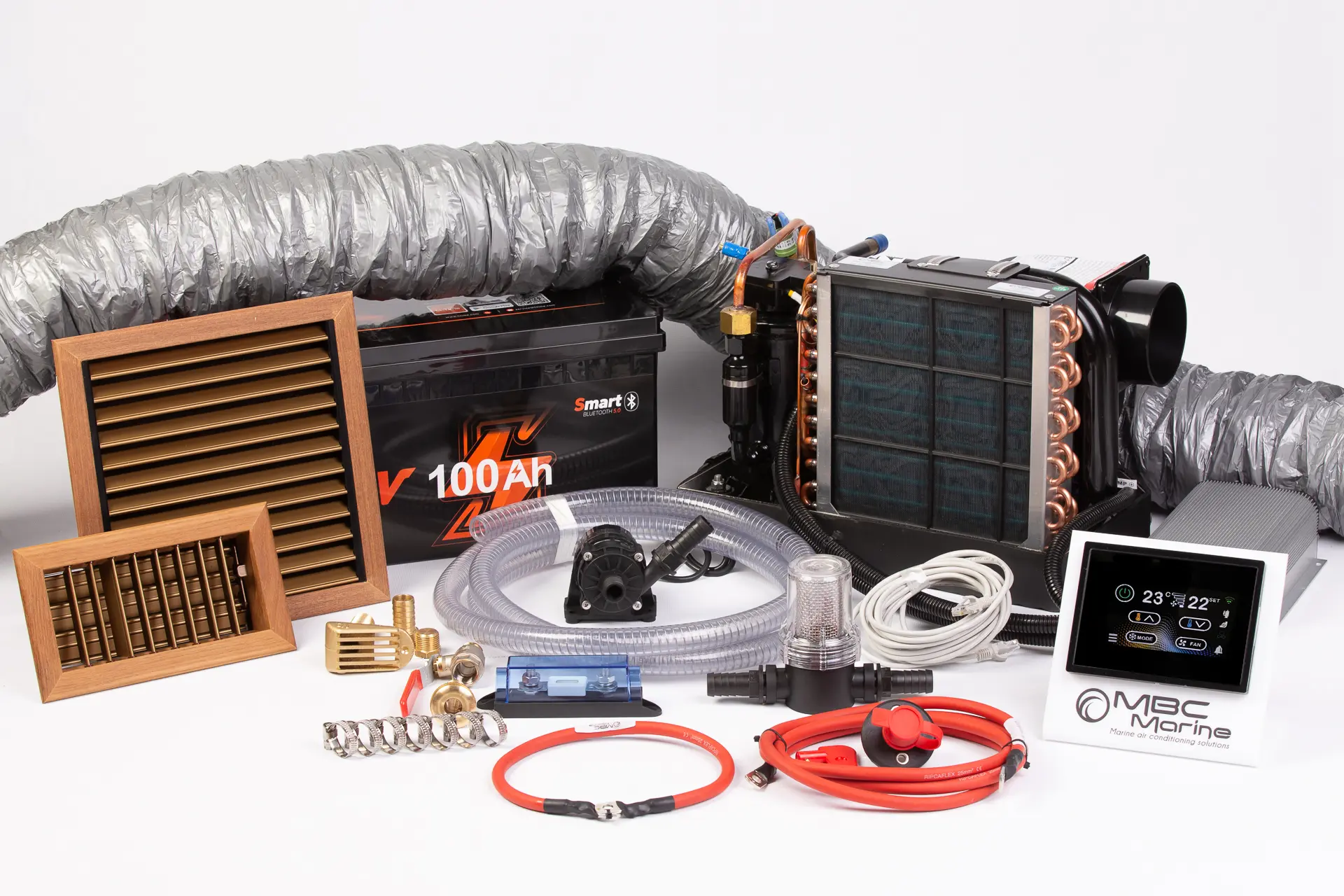

Standard package(included) + Woodline pack

And if the standard plastic supply and return air grilles don’t match the interior style of your boat, choose the Woodline Edition, which includes real TEAK or OAK grilles – for perfect visual harmony and a premium look.

Standard package(included) + Smart pack
